Design course of automobile mould inclined top 2019-08-19

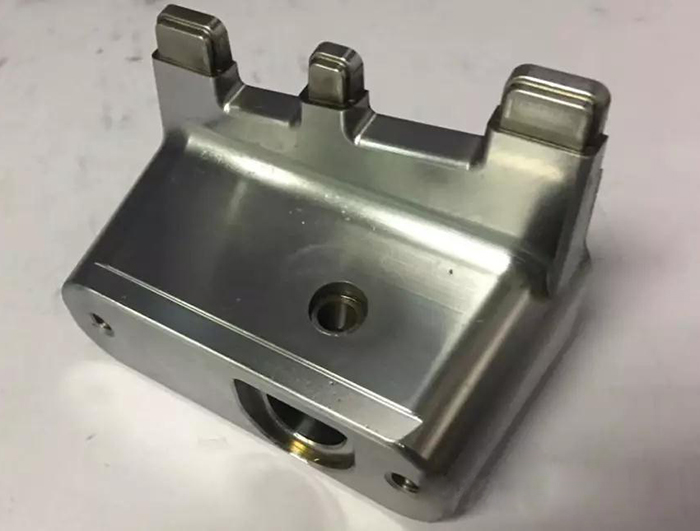

Design course of automobile mould inclined top

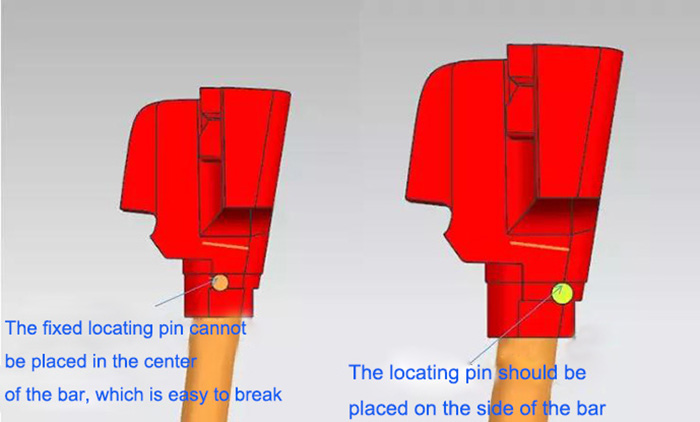

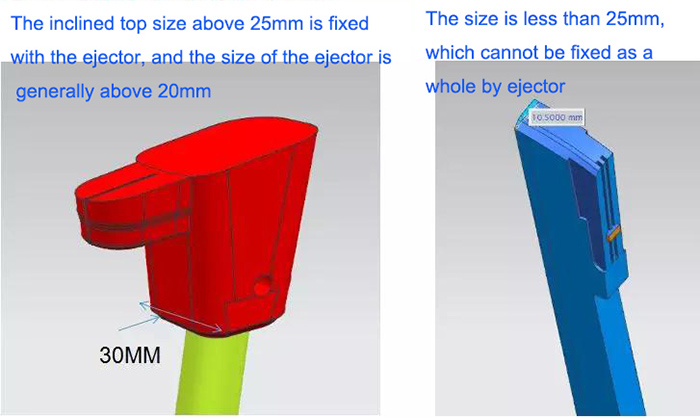

Normally, the ejector is fixed with a 6MM ejector pin.

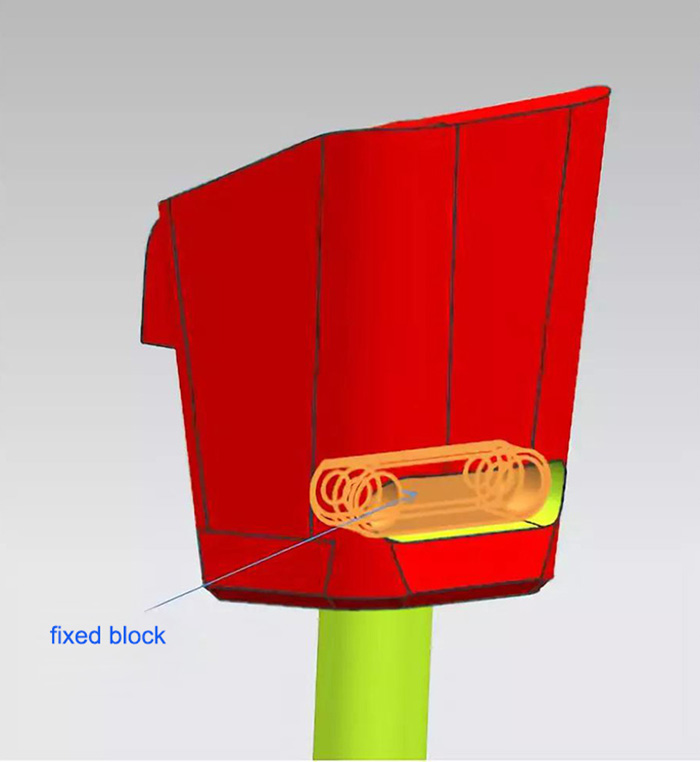

Export die requires high fixed block fixed, so easy to disassemble and assemble.

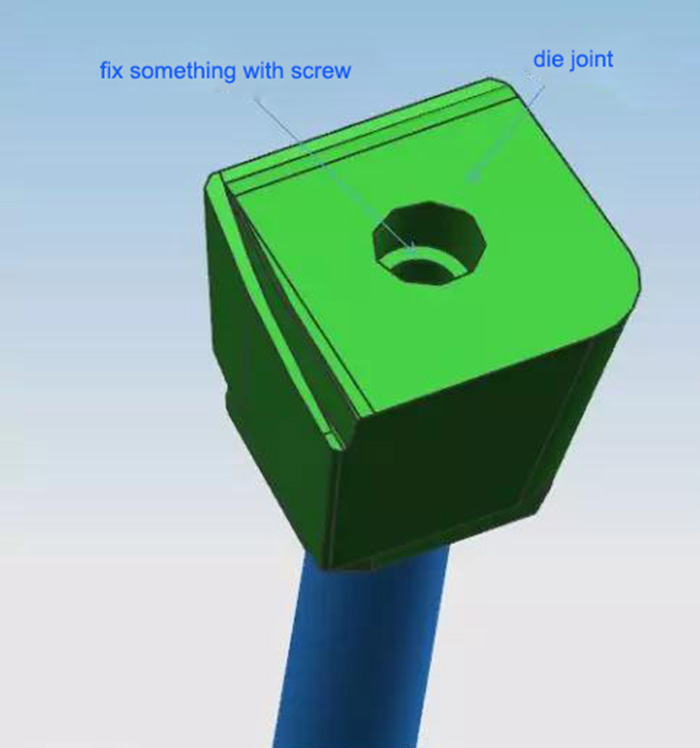

The inclined top is a parting surface. The inclined top can also be fixed with M8 screws.

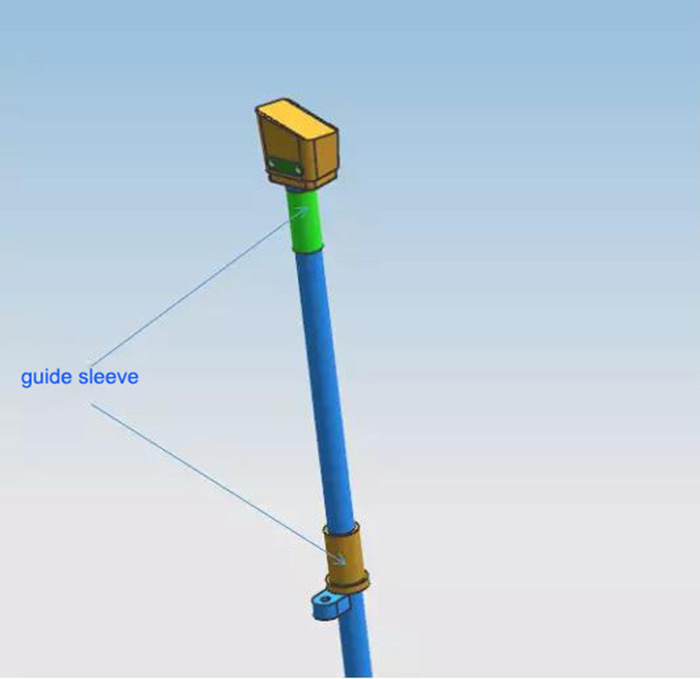

High requirements for export die, inclined top to design 2 guide sleeve, domestic die generally without this requirement.


Forming area of inclined roof to design waterways,

Waterways are generally designed with the most thimble plate on top.

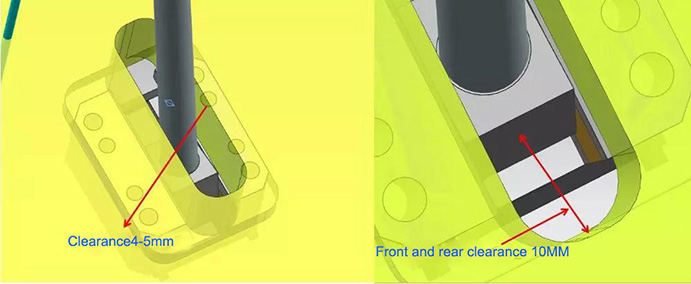

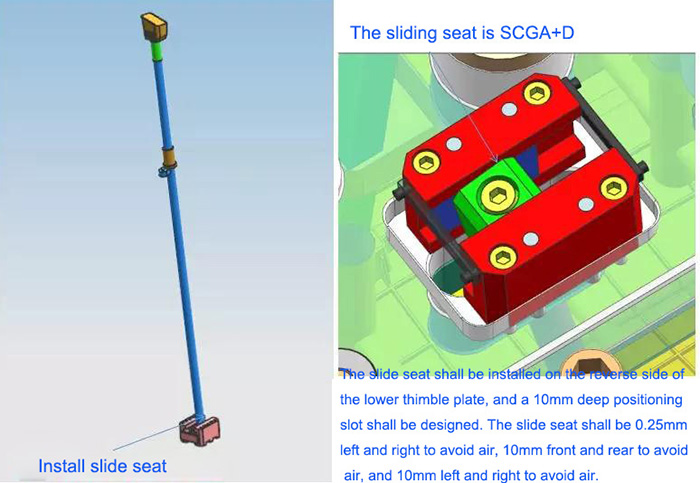

Especially large inclined top, slide seat to fix the middle of the top and bottom thimble plate.
